Name: Riaa-5532 Compact Size Low Noise MM Phono Stage Pre Amplifier For Receivers,Integrated DIY Kit
SKU: 1288
Availability: InStock

Riaa-5532 Compact Size Low Noise MM Phono Stage Pre Amplifier For Receivers,Integrated DIY Kit

Price range: $8.00 through $10.00

Description

Riaa-5532

Compact Size Low Noise MM Phono Stage Pre Amplifier

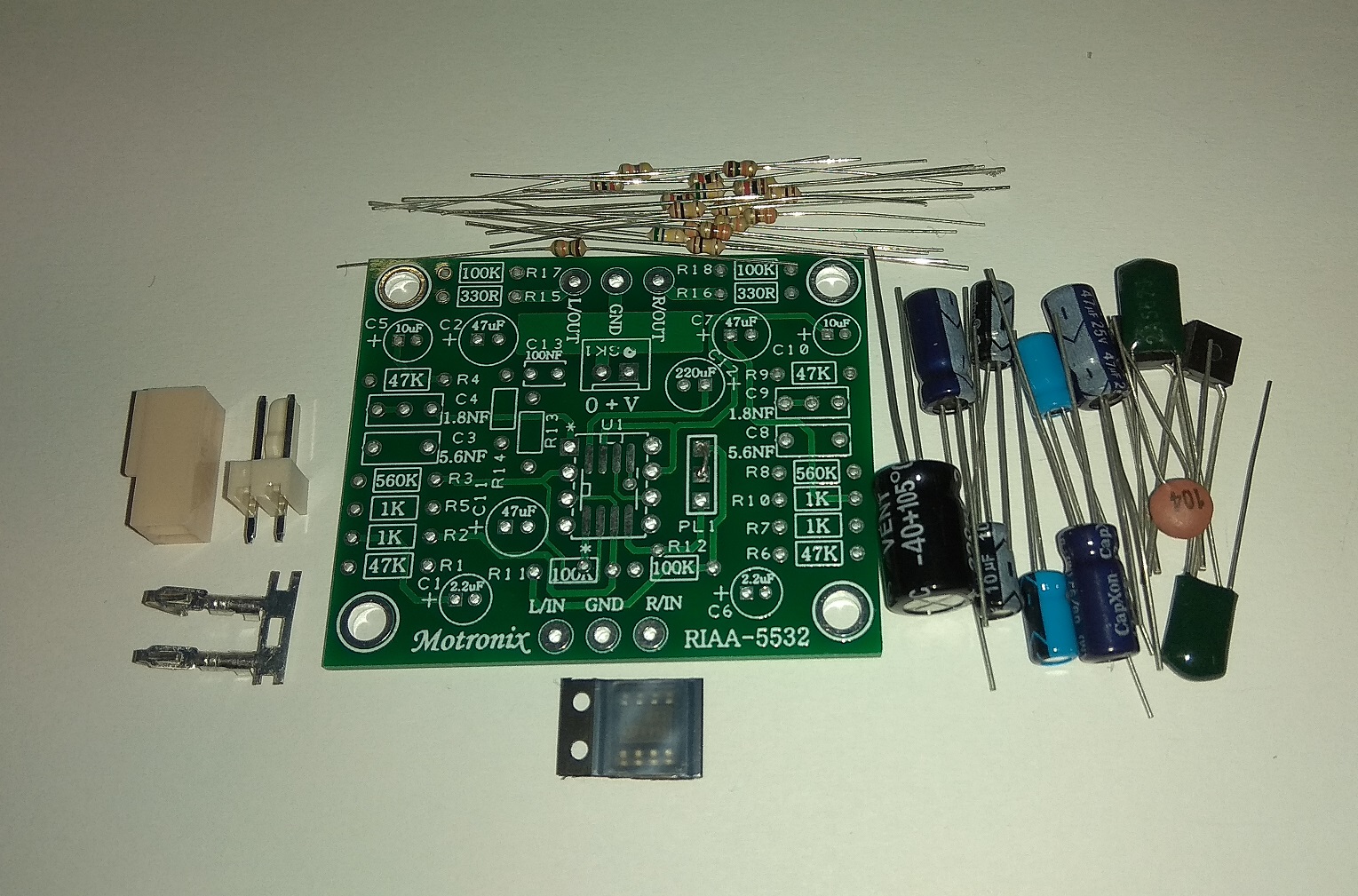

DIY Kit For Receivers,Integrated Amp,Mixers,Etc.

Stereo RIAA HIFI Pre Amplifier

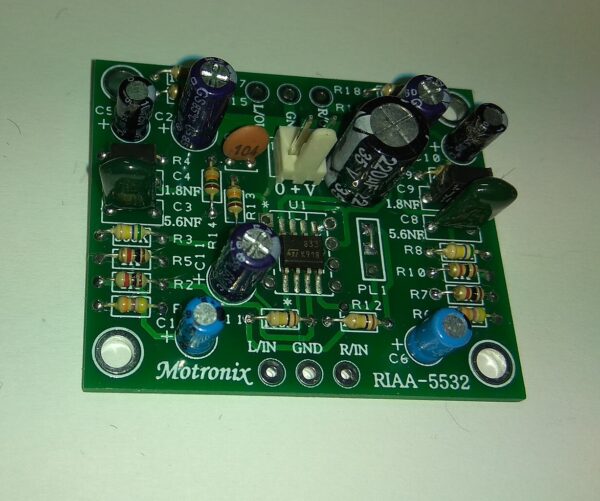

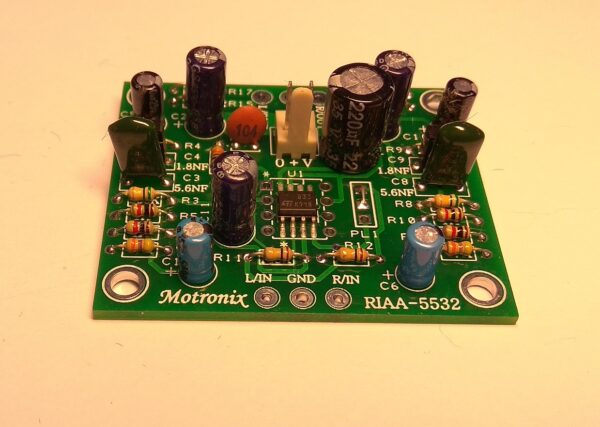

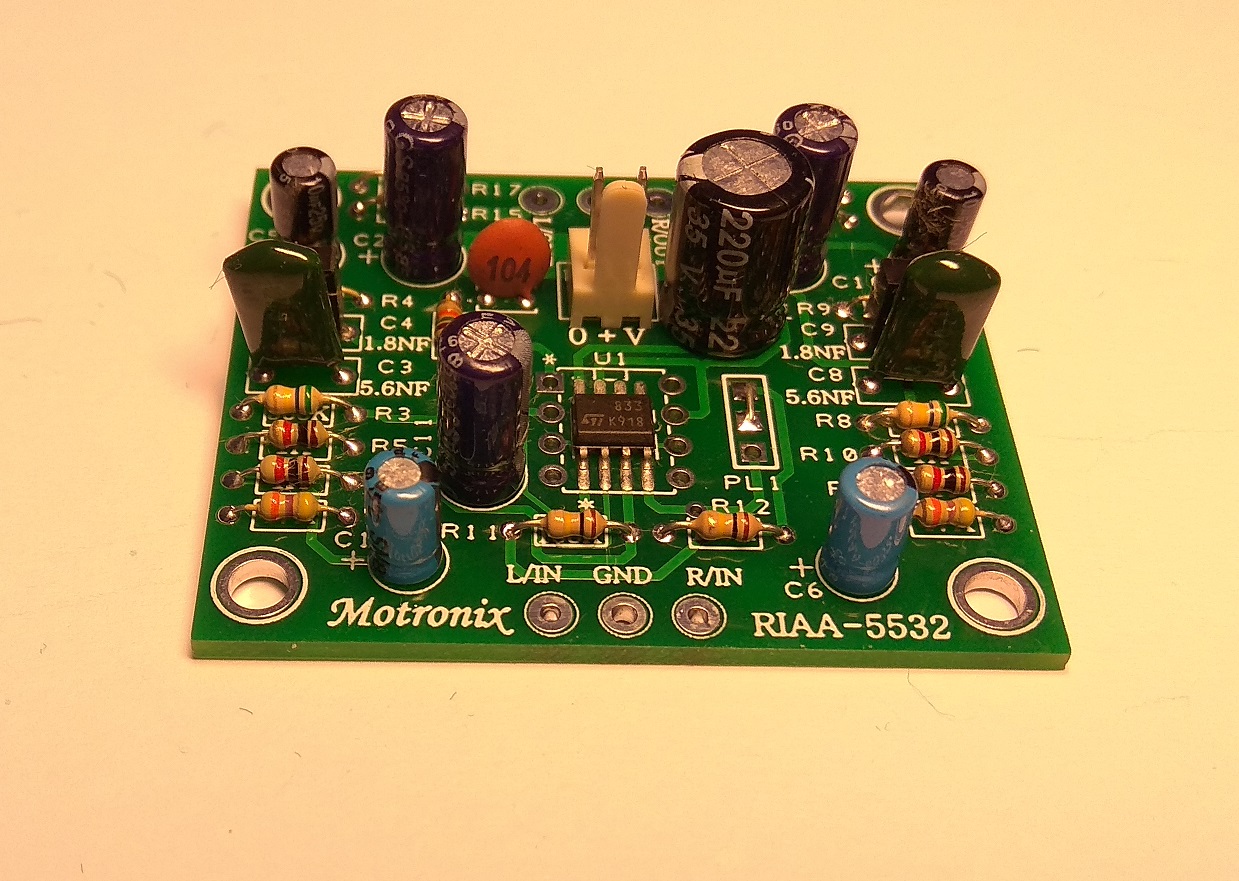

Compact Size PCB

Can place in equipment that don’t have Phono Preamp

Very Easy Installation procedure!

Working with Single 9-24Vdc Power supply (Recomended 15Vdc)

Pure Analog Sound With Low Noise Amplification IC Like

LM833,NE5532,TL072 We Use ONLY Original Genuine Parts

**The PCB/KIT arrive with SO8 smt IC Version

You have the option on board for DIP8 T.H IC

if you want to replace the IC**

Input sensitivity: 2.5mv (7mv max.)

Input Impedance: 47Kohm

Working Voltage: Single 9-24Vdc (Recomended 15V)

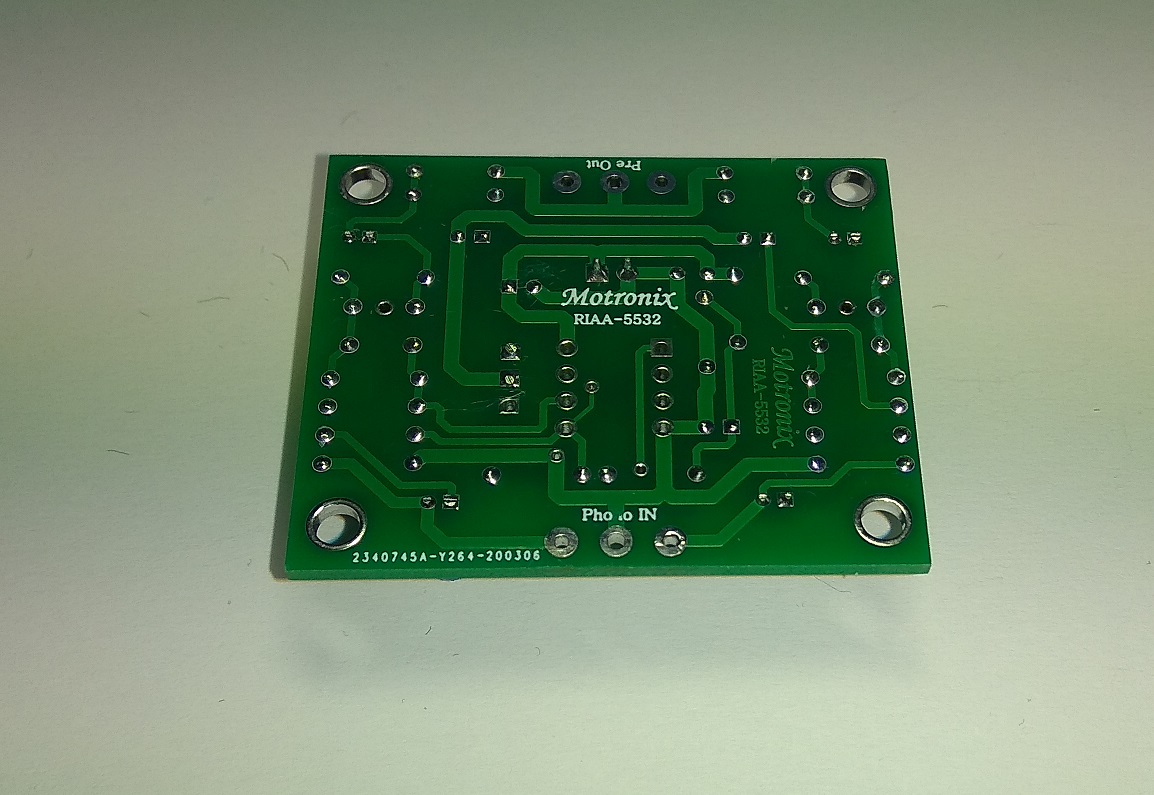

PCB Size: 49mm*40mm double-sided HAL,FR4 1.6MM

Additional information

Type	Riaa-5532 Assembled, Riaa-5532 KIT
