Description
RIAA-INV4SL
For sure the best product in the market
***Special Version***
This adapter fits the spacing of the output RCA jacks, which are consistent with the standard
dimensions of the RCA jacks on older receivers. Note that the spacing is larger.
There are 2 options that are suitable:

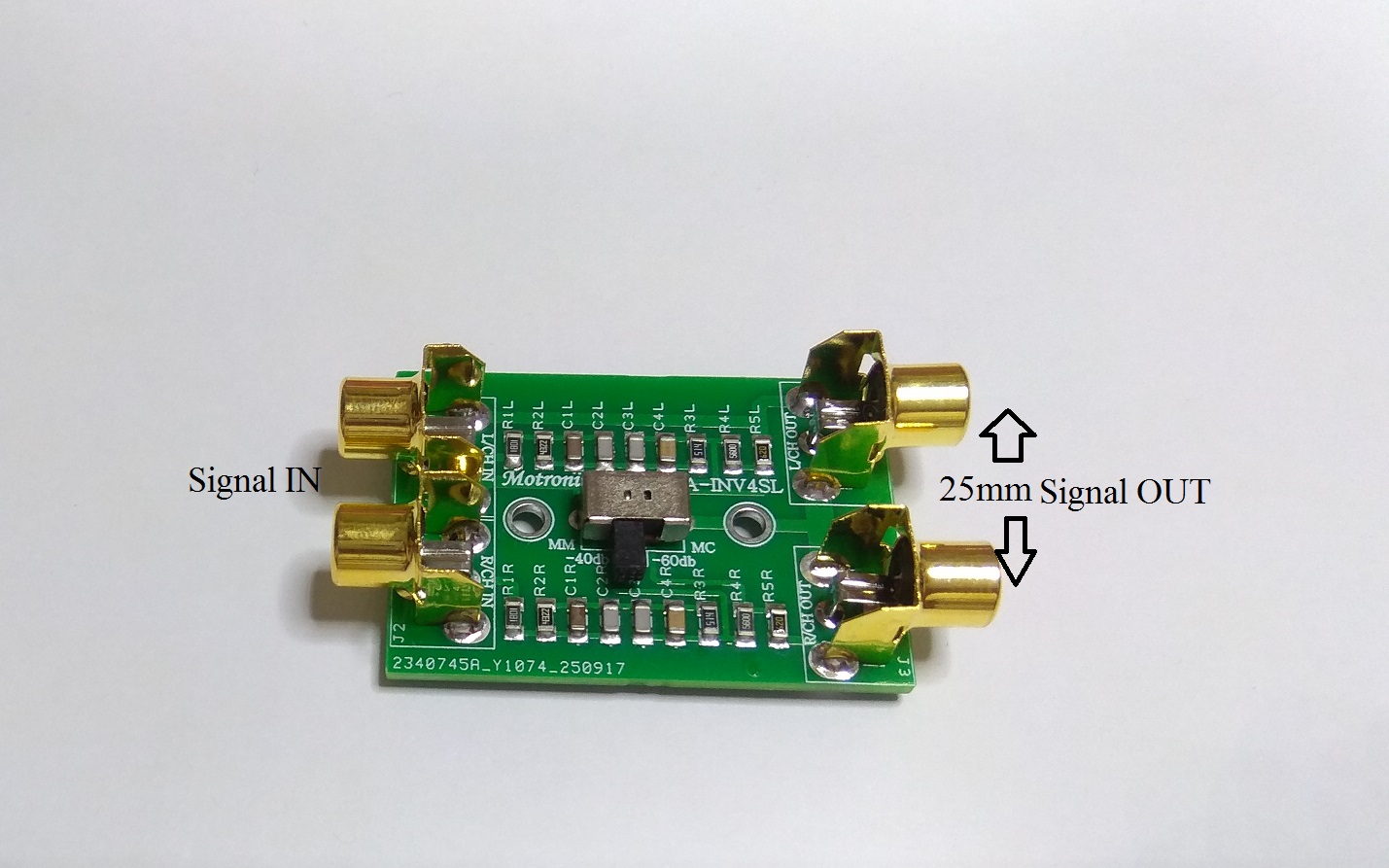

With a 20mm Output RCA gap and a 25mm Output RCA gap
Gold IN/OUT RCA Connectors
Direct connection to RCA sockets.
Very Small PCB Dimensions
No wires from the PCB to the connectors = Minimal noise / Radiation
Stereo High Quality Passive inverse RIAA filter
Gold RCA Input / Output connector Soldered for minimum noise and radiation
matched Capacitors for maximum L & R channel balance
for testing RIAA Stage Pre-Amp & make Aux Signal to Phono
With This Small PCB You Can test Phono Riaa input stage
also you can play with this item CD,AUX,etc. with RCA Phono Inputs
MM, MC Level -40dB / -60dB output Switch
This item is only PCB with components Assembled
PCB Size:

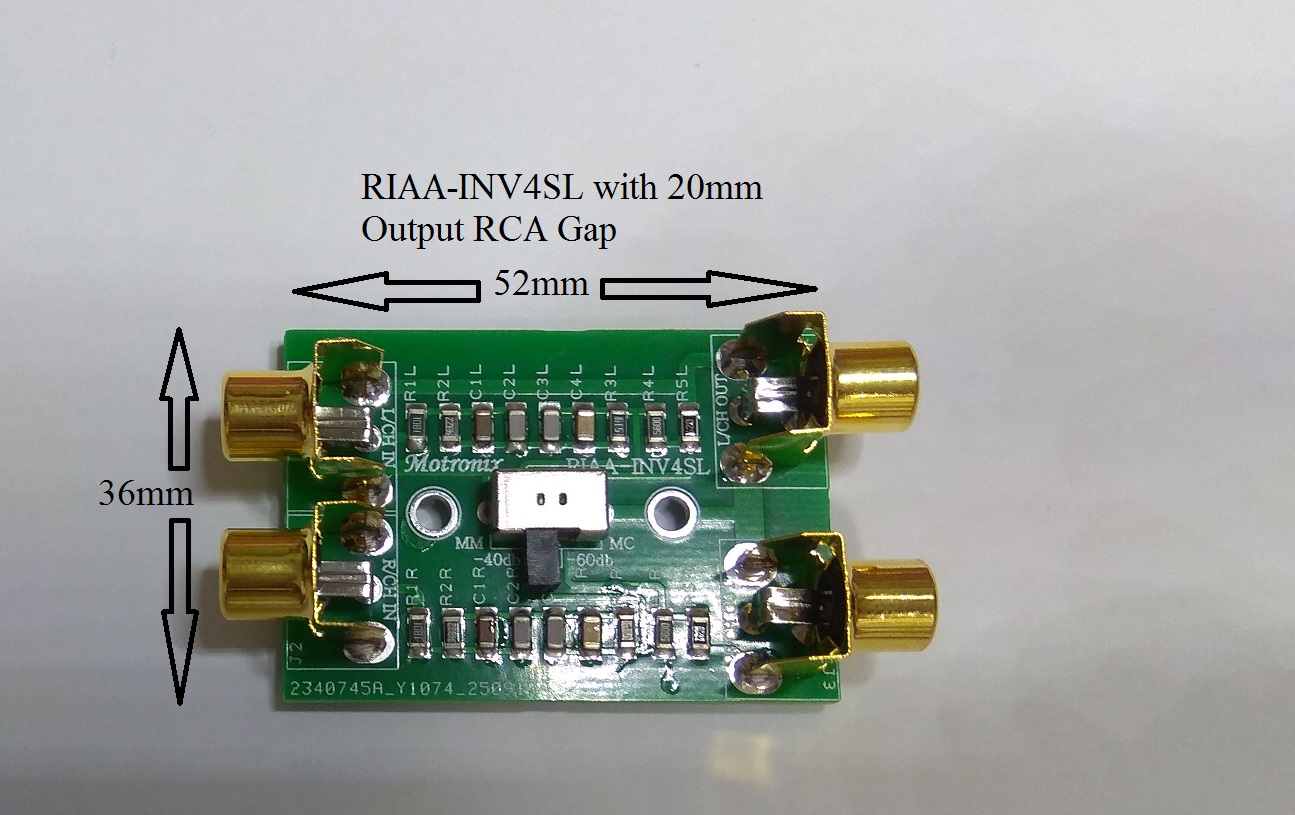

RIAA-INV4SL 20mm model: 52mm*36mm Green double-sided HAL,FR4 1.6MM

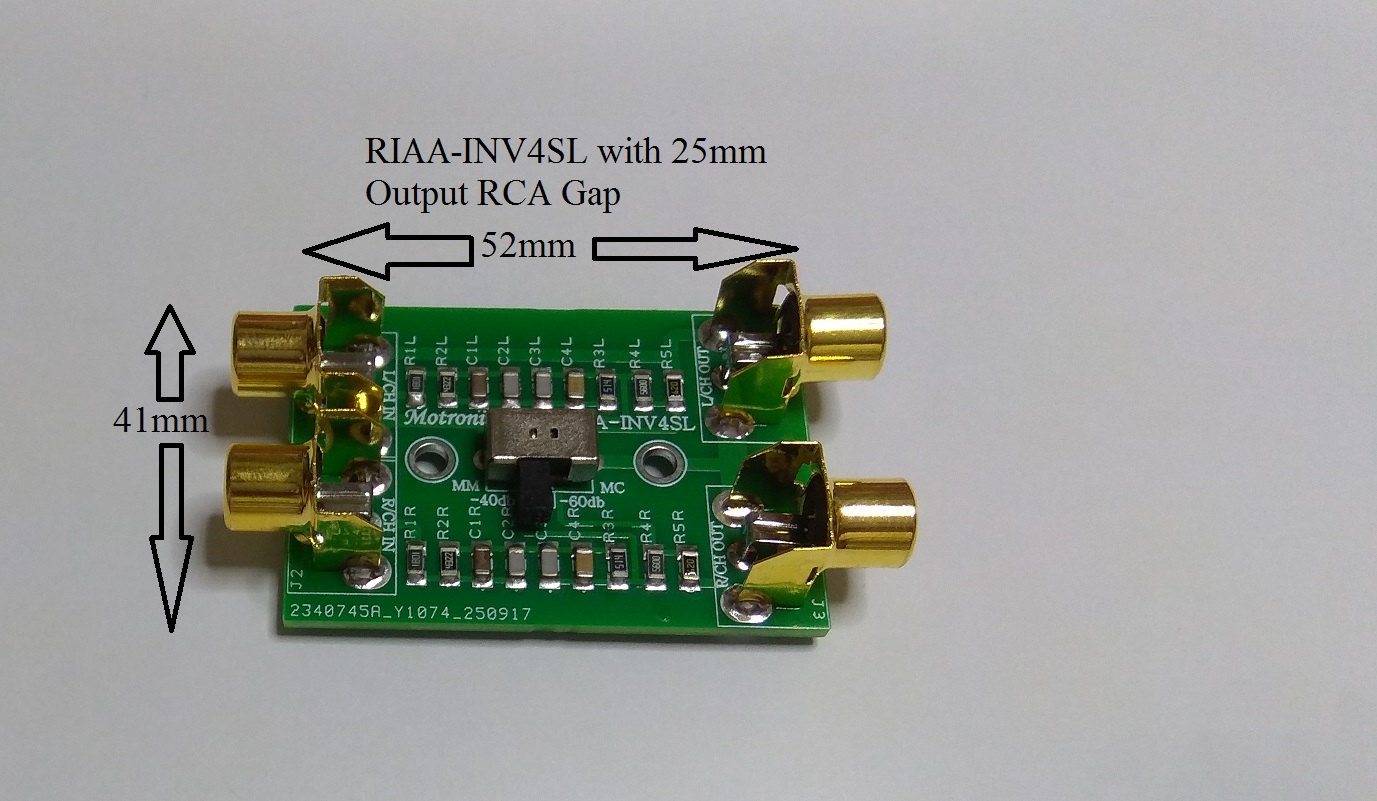

RIAA-INV4SL 25mm model: 52mm*41mm Green double-sided HAL,FR4 1.6MM
Applications: DIY Home / Integrated Amplifier / Pre-Amplifier / Test Equipment
